FINGER TIP PULSE OXIMETER

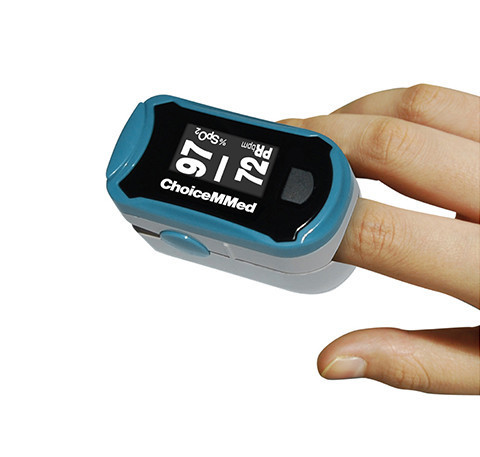

Oxywatch Fingertip Pulse Oximeter Mini , Adult Finger Clip Spo2 Sensor
Quick Detail :
- Integrated with SpO2 probe and processing display module
- Small in volume,light in weight and convenient in carrying
- Operation of the product is simple ,low power consumption
- SpO2 value display
- Pulse rate value display, bar graph display
- Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage
- Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe.
- Display Mode:LED display
- SpO2 Measuring Range:0%~100%, (the resolution is 1%).
- Accuracy:70%~100%:+/-2% ,Below 70% unspecified.
- PR Measuring Range:30bpm~250bpm, (the resolution is 1bpm)
- Accuracy:+/-2bpm or +/-2% (select larger)
- Measurement Performance in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is +/-4%, pulse rate error is +/-2 bpm or +/-2% (select larger).
- Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than +/-1%.
- Power Consumption:less than 25mA
- Voltage:DC 2.6V~3.6V
- Power Supply:1.5V (AAA size) alkaline batteries 2
- Battery working hour:The minimum continually work time is 24 hours ,theoretical number is 56 hours.
- Safety Type:Interior Battery,BF Type
SpO2 Measuring Range:
0%~100%, (the resolution is 1%).
70%~100%:±2% ,Below 70% unspecified.
PR Measuring Range:
30bpm~250bpm, (the resolution is 1bpm)
+2bpm or +2% (select larger)
